Statistics of a Daemon. More...

#include <Representation.h>

Public Member Functions
	DaemonStat ()
	Constructor of class DaemonStat.

	DaemonStat (const DaemonStat &other)
	Copy Constructor of class DaemonStat.

std::map< PString, std::map< PString, VecStat > > &	getMapStatCommunication ()
	Gets the mapStatCommunication of the DaemonStat.

const std::map< PString, std::map< PString, VecStat > > &	getMapStatCommunication () const
	Gets the mapStatCommunication of the DaemonStat.

std::map< PString, VecStat > &	getMapStatComputing ()
	Gets the mapStatComputing of the DaemonStat.

const std::map< PString, VecStat > &	getMapStatComputing () const
	Gets the mapStatComputing of the DaemonStat.

PString &	getName ()
	Gets the name of the DaemonStat.

const PString &	getName () const
	Gets the name of the DaemonStat.

DaemonStat &	operator= (const DaemonStat &other)
	Operator = of class DaemonStat.

template<typename Stream, DataStreamMode::DataStreamMode Mode>
bool	readWriteStream (Stream &ds)
	Load the current DaemonStat with a stream.

void	setMapStatCommunication (const std::map< PString, std::map< PString, VecStat > > &mapStatCommunication)
	Sets the mapStatCommunication of the DaemonStat.

void	setMapStatComputing (const std::map< PString, VecStat > &mapStatComputing)
	Sets the mapStatComputing of the DaemonStat.

void	setName (const PString &name)
	Sets the name of the DaemonStat.

virtual	~DaemonStat ()
	Destructor of class DaemonStat.

Protected Member Functions
void	copyDaemonStat (const DaemonStat &other)
	Copy Function of class DaemonStat.

Private Member Functions
void	initialisationDaemonStat ()
	Initialisation Function of class DaemonStat.

Private Attributes
std::map< PString, std::map< PString, VecStat > >	p_mapStatCommunication
	Map of the communication statistics (key: destination daemon name, value: {key: data type, value: vector of associated stats }.

std::map< PString, VecStat >	p_mapStatComputing
	Map of the computing statistics (key: stat name, value vector of stat)

PString	p_name
	Name of the Daemon where the stats come from.

Detailed Description

Statistics of a Daemon.

Definition at line 367 of file Representation.h.

Constructor & Destructor Documentation

◆ DaemonStat() [1/2]

DaemonStat::DaemonStat ( )

Constructor of class DaemonStat.

Definition at line 846 of file Representation.cpp.

                      {
        initialisationDaemonStat();
}

References initialisationDaemonStat().

Referenced by copyDaemonStat(), DaemonStat(), and operator=().

Here is the call graph for this function:

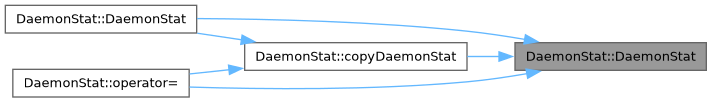

Here is the caller graph for this function:

◆ ~DaemonStat()

DaemonStat::~DaemonStat ( )

virtual

Destructor of class DaemonStat.

Definition at line 851 of file Representation.cpp.

                       {

}

◆ DaemonStat() [2/2]

DaemonStat::DaemonStat ( const DaemonStat & other )

Copy Constructor of class DaemonStat.

Parameters

other : DaemonStat we want ot copy

Definition at line 858 of file Representation.cpp.

                                              {
        copyDaemonStat(other);
}

References copyDaemonStat(), and DaemonStat().

Here is the call graph for this function:

Member Function Documentation

◆ copyDaemonStat()

void DaemonStat::copyDaemonStat ( const DaemonStat & other )

protected

Copy Function of class DaemonStat.

Parameters

other : DaemonStat we want ot copy

Definition at line 937 of file Representation.cpp.

                                                       {
        p_name = other.p_name;
        p_mapStatComputing = other.p_mapStatComputing;
        p_mapStatCommunication = other.p_mapStatCommunication;
}

References DaemonStat(), p_mapStatCommunication, p_mapStatComputing, and p_name.

Referenced by DaemonStat(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMapStatCommunication() [1/2]

std::map< PString, std::map< PString, VecStat > > & DaemonStat::getMapStatCommunication ( )

Gets the mapStatCommunication of the DaemonStat.

Returns: mapStatCommunication of the DaemonStat

Definition at line 930 of file Representation.cpp.

                                                                                 {
        return p_mapStatCommunication;
}

References p_mapStatCommunication.

◆ getMapStatCommunication() [2/2]

const std::map< PString, std::map< PString, VecStat > > & DaemonStat::getMapStatCommunication ( ) const

Gets the mapStatCommunication of the DaemonStat.

Returns: mapStatCommunication of the DaemonStat

Definition at line 923 of file Representation.cpp.

                                                                                             {
        return p_mapStatCommunication;
}

References p_mapStatCommunication.

Referenced by CheckStream< DaemonStat >::check_stream(), and BaseDaemon::fillDaemonStat().

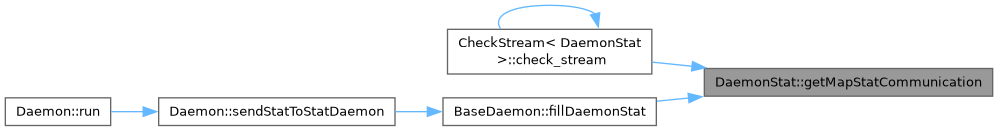

Here is the caller graph for this function:

◆ getMapStatComputing() [1/2]

std::map< PString, VecStat > & DaemonStat::getMapStatComputing ( )

Gets the mapStatComputing of the DaemonStat.

Returns: mapStatComputing of the DaemonStat

Definition at line 916 of file Representation.cpp.

                                                           {
        return p_mapStatComputing;
}

References p_mapStatComputing.

◆ getMapStatComputing() [2/2]

const std::map< PString, VecStat > & DaemonStat::getMapStatComputing ( ) const

Gets the mapStatComputing of the DaemonStat.

Returns: mapStatComputing of the DaemonStat

Definition at line 909 of file Representation.cpp.

                                                                       {
        return p_mapStatComputing;
}

References p_mapStatComputing.

Referenced by CheckStream< DaemonStat >::check_stream(), and BaseDaemon::fillDaemonStat().

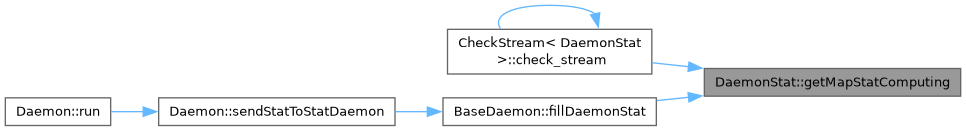

Here is the caller graph for this function:

◆ getName() [1/2]

PString & DaemonStat::getName ( )

Gets the name of the DaemonStat.

Returns: name of the DaemonStat

Definition at line 902 of file Representation.cpp.

                             {
        return p_name;
}

References p_name.

◆ getName() [2/2]

const PString & DaemonStat::getName ( ) const

Gets the name of the DaemonStat.

Returns: name of the DaemonStat

Definition at line 895 of file Representation.cpp.

                                         {
        return p_name;
}

References p_name.

Referenced by CheckStream< DaemonStat >::check_stream(), and StatDaemonManager< _TBackend >::fillStatInfo().

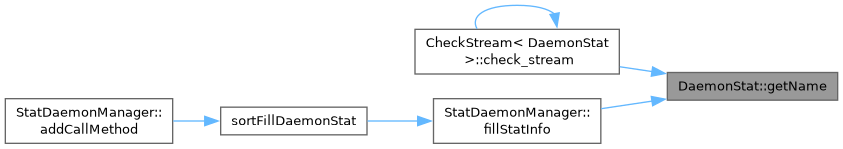

Here is the caller graph for this function:

◆ initialisationDaemonStat()

void DaemonStat::initialisationDaemonStat ( )

private

Initialisation Function of class DaemonStat.

Definition at line 944 of file Representation.cpp.

                                         {
        p_name = "";
}

References p_name.

Referenced by DaemonStat().

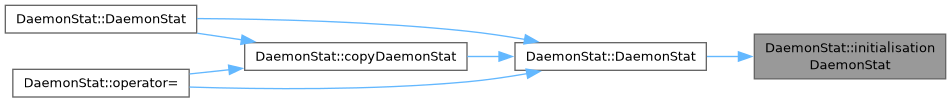

Here is the caller graph for this function:

◆ operator=()

DaemonStat & DaemonStat::operator= ( const DaemonStat & other )

Operator = of class DaemonStat.

Parameters

other : DaemonStat we want ot copy

Returns: copied class DaemonStat

Definition at line 866 of file Representation.cpp.

                                                            {
        copyDaemonStat(other);
        return *this;
}

References copyDaemonStat(), and DaemonStat().

Here is the call graph for this function:

◆ readWriteStream()

template<typename Stream, DataStreamMode::DataStreamMode Mode>

bool DaemonStat::readWriteStream ( Stream & ds )

inline

Load the current DaemonStat with a stream.

Parameters

[out] ds : stream to be used

Returns: true on success, false otherwise

Definition at line 388 of file Representation.h.

                                                 {
                        bool b(true);
                        b &= DataStream<Stream, Mode, PString >::data_stream(ds, p_name);
                        b &= DataStream<Stream, Mode, std::map<PString, VecStat > >::data_stream(ds, p_mapStatComputing);
                        b &= DataStream<Stream, Mode, std::map<PString, std::map<PString, VecStat > > >::data_stream(ds, p_mapStatCommunication);
                        return b;
                }

References p_mapStatCommunication, p_mapStatComputing, and p_name.

Referenced by DataStream< Stream, Mode, DaemonStat >::data_stream().

Here is the caller graph for this function:

◆ setMapStatCommunication()

void DaemonStat::setMapStatCommunication ( const std::map< PString, std::map< PString, VecStat > > & mapStatCommunication )

Sets the mapStatCommunication of the DaemonStat.

Parameters

mapStatCommunication : mapStatCommunication of the DaemonStat

Definition at line 888 of file Representation.cpp.

                                                                                                                {
        p_mapStatCommunication = mapStatCommunication;
}

References p_mapStatCommunication.

◆ setMapStatComputing()

void DaemonStat::setMapStatComputing ( const std::map< PString, VecStat > & mapStatComputing )

Sets the mapStatComputing of the DaemonStat.

Parameters

mapStatComputing : mapStatComputing of the DaemonStat

Definition at line 881 of file Representation.cpp.

                                                                                      {
        p_mapStatComputing = mapStatComputing;
}

References p_mapStatComputing.

◆ setName()

void DaemonStat::setName ( const PString & name )

Sets the name of the DaemonStat.

Parameters

name	: name of the DaemonStat

Definition at line 874 of file Representation.cpp.

                                            {
        p_name = name;
}

References p_name.

Referenced by Daemon< _TBackend >::sendStatToStatDaemon().

Here is the caller graph for this function:

Member Data Documentation

◆ p_mapStatCommunication

std::map<PString, std::map<PString, VecStat > > DaemonStat::p_mapStatCommunication

private

Map of the communication statistics (key: destination daemon name, value: {key: data type, value: vector of associated stats }.

Definition at line 405 of file Representation.h.

Referenced by copyDaemonStat(), getMapStatCommunication(), getMapStatCommunication(), readWriteStream(), and setMapStatCommunication().

◆ p_mapStatComputing

std::map<PString, VecStat > DaemonStat::p_mapStatComputing

private

Map of the computing statistics (key: stat name, value vector of stat)

Definition at line 403 of file Representation.h.

Referenced by copyDaemonStat(), getMapStatComputing(), getMapStatComputing(), readWriteStream(), and setMapStatComputing().

◆ p_name

PString DaemonStat::p_name

private

Name of the Daemon where the stats come from.

Definition at line 401 of file Representation.h.

Referenced by copyDaemonStat(), getName(), getName(), initialisationDaemonStat(), readWriteStream(), and setName().

The documentation for this class was generated from the following files:

/builds/CTA-LAPP/PHOENIX_LIBS2/network/PhoenixSwarm/src/Representation/Representation.h
/builds/CTA-LAPP/PHOENIX_LIBS2/network/PhoenixSwarm/src/Representation/Representation.cpp
