Daemon which help communication between processes and thread. More...

#include <BaseDaemon.h>

Inheritance diagram for BaseDaemon:

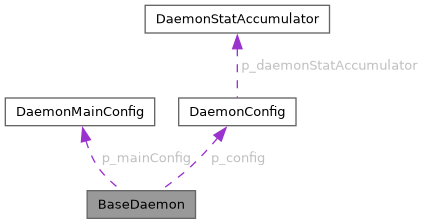

Collaboration diagram for BaseDaemon:

Public Member Functions
template<typename _Callable>
bool	addCallableMethod (_Callable &&function, const PString &name)
	Add a callable method of the Daemon.

virtual void	addCallMethod ()
	Do the addCallableMethod here.

template<typename _Class, typename _Data>
bool	addDataCallableMethod (PUncastableBool(&function)(_Class &, const _Data &), _Class &persistentData, size_t nbBin, float histLowerBound, float histUpperBound)
	Add a callable method of the Daemon.

template<typename _Data>
bool	addDataCallableMethod (PUncastableBool(&function)(const _Data &), size_t nbBin, float histLowerBound, float histUpperBound)
	Add a callable method of the Daemon.

void	addMessageToConfirm (const Message &message)
	Add a message to confirm.

	BaseDaemon ()
	Default constructor of BaseDaemon.

bool	callMethod (Data &result, const PString &name, const Data &parameter)
	Call an added callable method by name.

void	checkMessageTimeout (time_t currentTime)
	Check if a message has reached the timeout.

void	clearCallableMethod ()
	Clear the map of callable methods.

void	clearStat ()
	Clear all the statistics of the daemon.

StatAccumulator	createNewStat (size_t nbBin, float histLowerBound, float histUpperBound)
	Create a new clear computing statistic.

virtual bool	extraLoad (const ConfigNode *config)
	Extra call on load for the current Daemon.

DaemonConfig &	getConfig ()
	Get the configuration of the current BaseDaemon.

AbstractDataFunction *	getDataFunction (const Data &data)
	Get the data function associated with the given data.

PLog &	getLog ()
	Get the log of the current BaseDaemon.

PLog &	getLogger ()
	Get the logger of the current BaseDaemon.

DaemonMainConfig &	getMainConfig ()
	Get the main configuration of the swarm.

MapDaemonConfig &	getMapDaemonConfig ()
	Get the map of all Daemon configurations.

const std::map< size_t, Message > &	getMapMessageToBeConfirmed () const
	Get the map of message to be confirmed.

size_t	getMessageId ()
	Get current message id.

bool	getMessageToConfirm (Message &message, size_t id) const
	Get a message to confirm by id if it exists.

OptionParser &	getOptionParser ()
	Return the OptionParser of the current BaseDaemon.

bool	isDaemonExist (const PString &name) const
	Say if a neighbour Daemon does exist.

bool	load (const PPath &fileName, const PString &daemonName)
	Load the Toml configuration which define all BaseDaemons of the Swarm.

bool	load (const PString &configFileContent, const PString &daemonName, ConfigFormat::ConfigFormat format)
	Load the Json configuration which define all BaseDaemons of the Swarm.

void	loadConfigFromNode (const ConfigNode &dico, const PString &daemonName)
	Load configuration form a node of ConfigNode.

bool	parseArgument (int argc, char **argv)
	Parse arguments given to the BaseDaemon with command line.

void	processConfirmedMessage (size_t id, time_t currentTime)
	Process confirmed message.

bool	processData (const Data &data)
	Process given data with the proper method.

void	stop ()
	Stops the BaseDaemon.

void	updateStatAccumulator (StatAccumulator &stat, float value)
	Update a computing statistic with a new value.

virtual	~BaseDaemon ()
	Destructor of BaseDaemon.

Protected Member Functions
void	fillDaemonStat (DaemonStat &stat, time_t startTimestamp, time_t endTimestamp)
	Fill the DaemonStat with the current statistics of the daemon.

VecStat	fillVecStat (const StatAccumulator &accumulator, time_t startTimestamp, time_t endTimestamp)
	Fill a VecStat from a StatAccumulator to send to the DamonStat.

Protected Attributes
DaemonConfig	p_config
	Configuration of the curent Daemon.

bool	p_isFullMock
	True if the daemon has to be executed in mock mode for socket and clock.

bool	p_isFullMockRecord
	True if the daemon has to be executed in mock record mode for socket and clock.

bool	p_isRun
	True if the current BaseDaemon is running.

PLog	p_log
	Logger of the current Daemon.

DaemonMainConfig	p_mainConfig
	Main configuration of the Daemon.

MapDaemonConfig	p_mapDaemon
	Map of the other Daemon of the Swarm.

Private Member Functions
std::map< PString, StatAccumulator >	createNewCommunicationStatMap (const PString &dataType, size_t nbBin, float histLowerBound, float histUpperBound)
	Create a new map of communication statistic.

void	getCommunicationStat (const PString &destName, const PString &dataType, float latency, size_t nbBin, float histLowerBound, float histUpperBound)
	Add a communication statistic.

void	initialisationBaseDaemon ()
	Initialisation function of the class BaseDaemon.

Private Attributes
std::map< PString, AbstractFunction * >	p_mapCallableMethod
	Map of callable method of the Daemon.

std::map< PString, AbstractDataFunction * >	p_mapDataFunction
	Map of methods which have to be called when receiving data.

std::map< size_t, Message >	p_mapMessageToBeConfirmed
	Map of messages which have to be confirmed by destination Daemon.

size_t	p_messageId
	Id counter of the message of the current Daemon.

OptionParser	p_optionParser
	Option parser of the Daemon.

Detailed Description

Daemon which help communication between processes and thread.

Definition at line 54 of file BaseDaemon.h.

Constructor & Destructor Documentation

◆ BaseDaemon()

BaseDaemon::BaseDaemon ( )

Default constructor of BaseDaemon.

Definition at line 12 of file BaseDaemon.cpp.

        :p_optionParser(true, __PROGRAM_VERSION__)
{
        initialisationBaseDaemon();
}

References initialisationBaseDaemon(), and p_optionParser.

Referenced by Daemon< _TBackend >::Daemon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~BaseDaemon()

BaseDaemon::~BaseDaemon ( )

virtual

Destructor of BaseDaemon.

Definition at line 19 of file BaseDaemon.cpp.

                       {
        clearCallableMethod();
}

References clearCallableMethod().

Here is the call graph for this function:

Member Function Documentation

◆ addCallableMethod()

template<typename _Callable>

bool BaseDaemon::addCallableMethod	(	_Callable &&	function,
		const PString &	name )

inline

Add a callable method of the Daemon.

Parameters

function	: method to be added
name	: name of the method which can be called

Returns: true on success, false otherwise

Definition at line 73 of file BaseDaemon.h.

                                                                                   {
                        std::map<PString, AbstractFunction*>::iterator it(p_mapCallableMethod.find(name));
                        if(it != p_mapCallableMethod.end()){
                                getLog().getLogError() << "BaseDaemon::addCallableMethod : function '"<<name<<"' already added" << std::endl;
                                return false;
                        }
                        p_mapCallableMethod[name] = new FunctionCall(function, name);
                        return true;
                }

References getLog(), and p_mapCallableMethod.

Here is the call graph for this function:

◆ addCallMethod()

void BaseDaemon::addCallMethod ( )

virtual

Do the addCallableMethod here.

Reimplemented in StatDaemonManager< _TBackend >.

Definition at line 107 of file BaseDaemon.cpp.

                              {
        if(p_log.isOpen()){
                p_log.getLogWarning() << "BaseDaemon::addCallMethod : no redefined addCallMethod " << std::endl;
        }else{
                std::cerr << "BaseDaemon::addCallMethod : no redefined addCallMethod (and no log file so we use std::cerr)" << std::endl;
        }
}

References p_log.

Referenced by loadConfigFromNode().

Here is the caller graph for this function:

◆ addDataCallableMethod() [1/2]

template<typename _Class, typename _Data>

bool BaseDaemon::addDataCallableMethod	(	PUncastableBool(&)(_Class &, const _Data &)	function,
		_Class &	persistentData,
		size_t	nbBin,
		float	histLowerBound,
		float	histUpperBound )

inline

Add a callable method of the Daemon.

Parameters

function	: method to be added
persistentData	: data used each time the method is called
nbBin	: number of bin in the histogram
histLowerBound	: lower bound of the histogram
histUpperBound	: upper bound of the histogram

Returns: true on success, false otherwise

Definition at line 128 of file BaseDaemon.h.

                                                                                                                                                                                  {
                        PString prototype(phoenix_getTypeToStr<_Data>());
                        std::cout << "BaseDaemon::addDataCallableMethod : prototype = " << prototype << std::endl;
                        std::map<PString, AbstractDataFunction*>::iterator it(p_mapDataFunction.find(prototype));
                        if(it != p_mapDataFunction.end()){
                                getLog().getLogError() << "BaseDaemon::addDataCallableMethod : function to process data '"<<prototype<<"' already added" << std::endl;
                                return false;
                        }
                        getLog().getLogDebug() << "BaseDaemon::addDataCallableMethod : add method to process data '"<<prototype<<"'" << std::endl;
                        p_mapDataFunction[prototype] = new DataFunctionClassCall(function, persistentData, prototype);
                        p_config.getDaemonStatAccumulator().getMapStatComputing()[prototype] = createNewStat(nbBin, histLowerBound, histUpperBound);
                        return true;
                }

References createNewStat(), getLog(), p_config, and p_mapDataFunction.

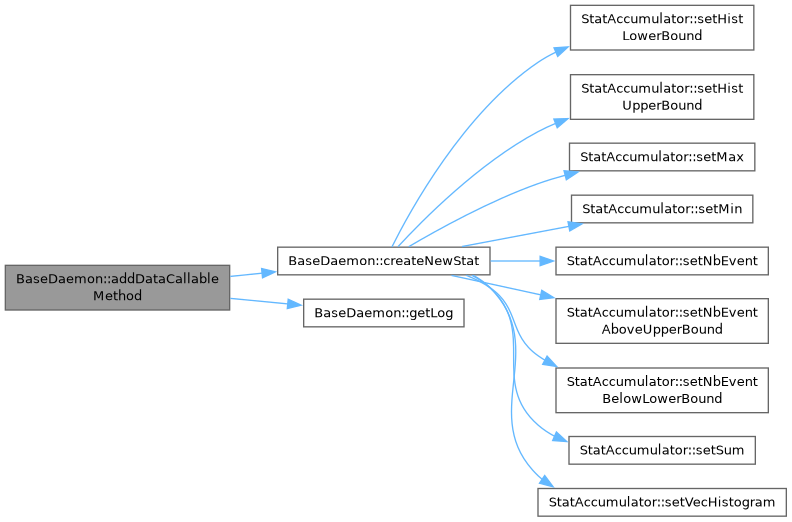

Here is the call graph for this function:

◆ addDataCallableMethod() [2/2]

template<typename _Data>

bool BaseDaemon::addDataCallableMethod	(	PUncastableBool(&)(const _Data &)	function,
		size_t	nbBin,
		float	histLowerBound,
		float	histUpperBound )

inline

Add a callable method of the Daemon.

Parameters

function	: method to be added
nbBin	: number of bin in the histogram
histLowerBound	: lower bound of the histogram
histUpperBound	: upper bound of the histogram

Returns: true on success, false otherwise

Definition at line 105 of file BaseDaemon.h.

                                                                                                                                               {
                        PString prototype(phoenix_getTypeToStr<_Data>());
                        std::cout << "BaseDaemon::addDataCallableMethod : prototype = " << prototype << std::endl;
                        std::map<PString, AbstractDataFunction*>::iterator it(p_mapDataFunction.find(prototype));
                        if(it != p_mapDataFunction.end()){
                                getLog().getLogError() << "BaseDaemon::addDataCallableMethod : function to process data '"<<prototype<<"' already added" << std::endl;
                                return false;
                        }
                        getLog().getLogDebug() << "BaseDaemon::addDataCallableMethod : add method to process data '"<<prototype<<"'" << std::endl;
                        p_mapDataFunction[prototype] = new DataFunctionCall(function, prototype);
                        p_config.getDaemonStatAccumulator().getMapStatComputing()[prototype] = createNewStat(nbBin, histLowerBound, histUpperBound);
                        return true;
                }

References createNewStat(), getLog(), p_config, and p_mapDataFunction.

Referenced by StatDaemonManager< _TBackend >::addCallMethod().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addMessageToConfirm()

void BaseDaemon::addMessageToConfirm ( const Message & message )

Add a message to confirm.

Parameters

message : message to be added

Definition at line 180 of file BaseDaemon.cpp.

                                                           {
        p_mapMessageToBeConfirmed[message.getId()] = message;
}

References Message::getId(), and p_mapMessageToBeConfirmed.

Referenced by Daemon< _TBackend >::sendMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ callMethod()

bool BaseDaemon::callMethod	(	Data &	result,
		const PString &	name,
		const Data &	parameter )

Call an added callable method by name.

Parameters

[out]	result	: result of the call
	name	: name of the method
	parameter	: parameters of the call

Returns: true on success, false otherwise

Definition at line 121 of file BaseDaemon.cpp.

                                                                                      {
        std::map<PString, AbstractFunction*>::iterator it(p_mapCallableMethod.find(name));
        if(it == p_mapCallableMethod.end()){
                getLog().getLogError() << "BaseDaemon::callMethod : function '"<<name<<"' not found" << std::endl;
                return false;
        }
        return p_mapCallableMethod[name]->call(p_log, result, parameter);
}

References getLog(), p_log, and p_mapCallableMethod.

Here is the call graph for this function:

◆ checkMessageTimeout()

void BaseDaemon::checkMessageTimeout ( time_t currentTime )

Check if a message has reached the timeout.

Parameters

currentTime : current time

Definition at line 223 of file BaseDaemon.cpp.

                                                      {
        std::vector<size_t> messagesToRemove;
        for(auto it = p_mapMessageToBeConfirmed.begin(); it != p_mapMessageToBeConfirmed.end(); ++it){
                const size_t & messageId = it->first;
                const Message & message = it->second;
                time_t elapsedTime = currentTime - message.getSendTime();
                if(message.getVecRecver().size() == 0lu){
                        getLog().getLogError() << "BaseDaemon::checkMessageTimeout() : message " << messageId << " has no receiver." << std::endl;
                        continue;
                }
                std::map<PString, time_t>::const_iterator timeoutIt = p_config.getMapTimeout().find(message.getVecRecver().front());
                if(timeoutIt == p_config.getMapTimeout().end()){
                        getLog().getLogError() << "BaseDaemon::checkMessageTimeout() : no timeout found for receiver '" << message.getVecRecver().front() << "' of message " << messageId << "." << std::endl;
                        continue;
                }
                time_t timeout = timeoutIt->second;
                phoenix_assert(message.getVecRecver().size() != 0lu);
                if (elapsedTime > timeout) {
                        messagesToRemove.push_back(messageId);
                        getLog().getLogWarning() << "BaseDaemon::checkMessageTimeout() : Timeout Reached for message " << messageId << " sent to '" << message.getVecRecver().front() << "'. Removing unconfirmed transaction" << std::endl;
                }
        }
        for(const size_t & messageId : messagesToRemove){
                p_mapMessageToBeConfirmed.erase(messageId);
        }
}

References getLog(), Message::getSendTime(), Message::getVecRecver(), p_config, and p_mapMessageToBeConfirmed.

Referenced by Daemon< _TBackend >::run().

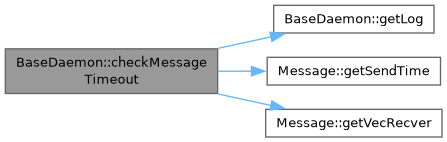

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearCallableMethod()

void BaseDaemon::clearCallableMethod ( )

Clear the map of callable methods.

Definition at line 131 of file BaseDaemon.cpp.

                                    {
        for(std::map<PString, AbstractFunction*>::iterator it(p_mapCallableMethod.begin()); it != p_mapCallableMethod.end(); ++it){
                delete it->second;
        }
        p_mapCallableMethod.clear();
}

References p_mapCallableMethod.

Referenced by ~BaseDaemon().

Here is the caller graph for this function:

◆ clearStat()

void BaseDaemon::clearStat ( )

Clear all the statistics of the daemon.

Definition at line 349 of file BaseDaemon.cpp.

                          {
        for(MapStatAccumulator::iterator it = p_config.getDaemonStatAccumulator().getMapStatComputing().begin(); it != p_config.getDaemonStatAccumulator().getMapStatComputing().end(); ++it){
                it->second.setNbEvent(0lu);
                std::fill(it->second.getVecHistogram().begin(), it->second.getVecHistogram().end(), 0lu);
        }
        for(MapDaemonStatAccumulator::iterator itMap = p_config.getDaemonStatAccumulator().getMapStatCommunication().begin(); itMap != p_config.getDaemonStatAccumulator().getMapStatCommunication().end(); ++itMap){
                for(MapStatAccumulator::iterator it = itMap->second.begin(); it != itMap->second.end(); ++it){
                        it->second.setNbEvent(0lu);
                        std::fill(it->second.getVecHistogram().begin(), it->second.getVecHistogram().end(), 0lu);
                }
        }
}

References p_config.

Referenced by Daemon< _TBackend >::sendStatToStatDaemon().

Here is the caller graph for this function:

◆ createNewCommunicationStatMap()

std::map< PString, StatAccumulator > BaseDaemon::createNewCommunicationStatMap	(	const PString &	dataType,
		size_t	nbBin,
		float	histLowerBound,
		float	histUpperBound )

private

Create a new map of communication statistic.

Parameters

dataType	: type of data which where pushed
nbBin	: number of bin of the histogram
histLowerBound	: lower bound of the histogram
histUpperBound	: upper bound of the histogram

Returns: new map of communication statistic

Definition at line 411 of file BaseDaemon.cpp.

                                                                                                                                                            {
        std::map<PString, StatAccumulator> newStatMap;
        newStatMap[dataType] = createNewStat(nbBin, histLowerBound, histUpperBound);
        return newStatMap;
}

References createNewStat().

Referenced by getCommunicationStat().

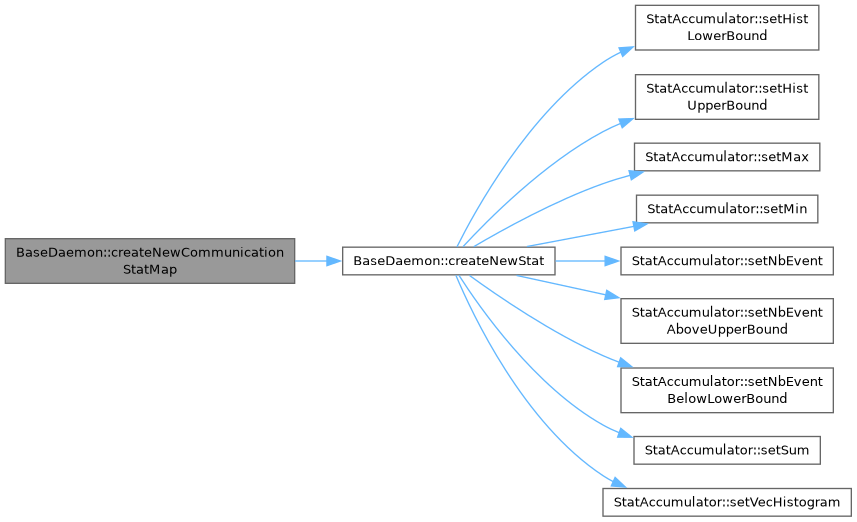

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createNewStat()

StatAccumulator BaseDaemon::createNewStat	(	size_t	nbBin,
		float	histLowerBound,
		float	histUpperBound )

Create a new clear computing statistic.

Parameters

nbBin	: number of bin of the histogram
histLowerBound	: lower bound of the histogram
histUpperBound	: upper bound of the histogram

Returns: new clear computing statistic

Definition at line 326 of file BaseDaemon.cpp.

                                                                                                 {
        StatAccumulator newStat;
        newStat.setNbEvent(0lu);
        newStat.setMin(std::nan(""));
        newStat.setMax(std::nan(""));
        newStat.setSum(std::nan(""));
        newStat.setNbEventAboveUpperBound(0lu);
        newStat.setNbEventBelowLowerBound(0lu);
        newStat.setHistUpperBound(histUpperBound);
        newStat.setHistLowerBound(histLowerBound);
        newStat.setVecHistogram(std::vector<size_t>(nbBin, 0lu));
        return newStat;
}

References StatAccumulator::setHistLowerBound(), StatAccumulator::setHistUpperBound(), StatAccumulator::setMax(), StatAccumulator::setMin(), StatAccumulator::setNbEvent(), StatAccumulator::setNbEventAboveUpperBound(), StatAccumulator::setNbEventBelowLowerBound(), StatAccumulator::setSum(), and StatAccumulator::setVecHistogram().

Referenced by addDataCallableMethod(), addDataCallableMethod(), createNewCommunicationStatMap(), and getCommunicationStat().

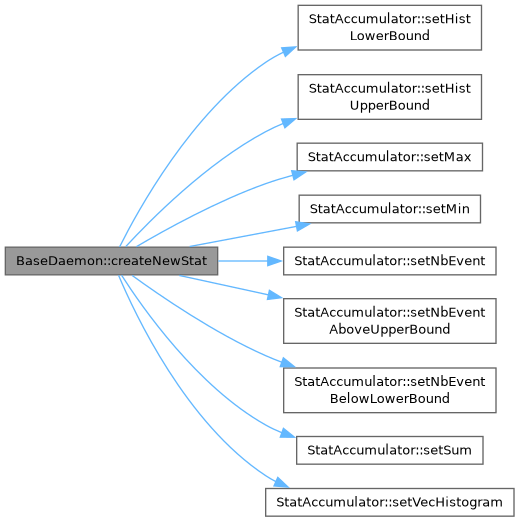

Here is the call graph for this function:

Here is the caller graph for this function:

◆ extraLoad()

bool BaseDaemon::extraLoad ( const ConfigNode * config )

virtual

Extra call on load for the current Daemon.

Parameters

config : configuration for the current Daemon

Returns: true on success, false otherwise

Definition at line 102 of file BaseDaemon.cpp.

                                                   {
        return true;
}

◆ fillDaemonStat()

void BaseDaemon::fillDaemonStat	(	DaemonStat &	stat,
		time_t	startTimestamp,
		time_t	endTimestamp )

protected

Fill the DaemonStat with the current statistics of the daemon.

Parameters

stat	DaemonStat to be filled
startTimestamp	time at which the statistic started to be filled
endTimestamp	time at which the statistic stopped to be filled

Definition at line 476 of file BaseDaemon.cpp.

                                                                                            {
        // Fill the computing statistics
        MapStatAccumulator & mapStatComputing = p_config.getDaemonStatAccumulator().getMapStatComputing();
        for(MapStatAccumulator::iterator it = mapStatComputing.begin(); it != mapStatComputing.end(); ++it){
                StatAccumulator & accumulator = it->second;
                VecStat vecStat = fillVecStat(accumulator, startTimestamp, endTimestamp);
                stat.getMapStatComputing()[it->first] = vecStat;
        }

        // Fill the communication statistics
        MapDaemonStatAccumulator & mapStatCommunication = p_config.getDaemonStatAccumulator().getMapStatCommunication();
        for(MapDaemonStatAccumulator::iterator itMap = mapStatCommunication.begin(); itMap != mapStatCommunication.end(); ++itMap){
                const PString & destName = itMap->first;
                std::map<PString, VecStat> & mapVecStat = stat.getMapStatCommunication()[destName];
                for(MapStatAccumulator::iterator it = itMap->second.begin(); it != itMap->second.end(); ++it){
                        StatAccumulator & accumulator = it->second;
                        VecStat vecStat = fillVecStat(accumulator, startTimestamp, endTimestamp);
                        mapVecStat[it->first] = vecStat;
                }
        }
}

References fillVecStat(), DaemonStat::getMapStatCommunication(), DaemonStat::getMapStatComputing(), and p_config.

Referenced by Daemon< _TBackend >::sendStatToStatDaemon().

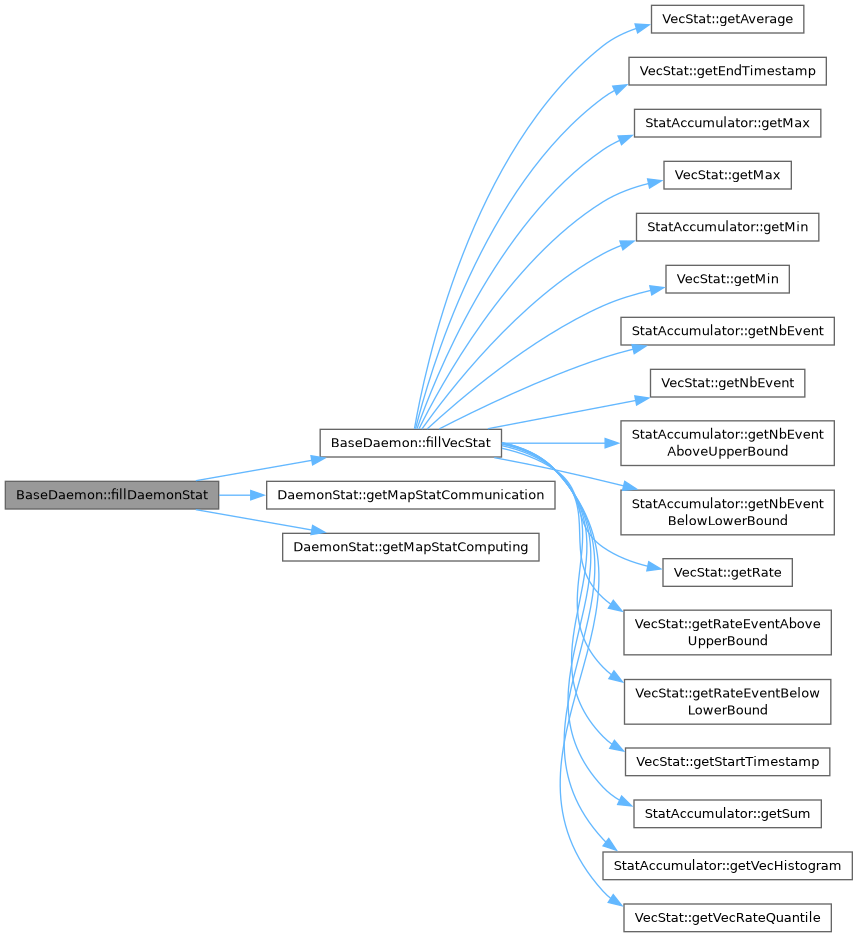

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fillVecStat()

VecStat BaseDaemon::fillVecStat	(	const StatAccumulator &	accumulator,
		time_t	startTimestamp,
		time_t	endTimestamp )

protected

Fill a VecStat from a StatAccumulator to send to the DamonStat.

Parameters

accumulator	StatAccumulator to be converted
startTimestamp	time at which the statistic started to be filled
endTimestamp	time at which the statistic stopped to be filled

Returns: VecStat filled with the statistics from the accumulator

Definition at line 446 of file BaseDaemon.cpp.

                                                                                                              {
        VecStat vecStat;

        // Compute event values
        vecStat.getNbEvent().push_back(accumulator.getNbEvent());
        vecStat.getMin().push_back(accumulator.getMin());
        vecStat.getMax().push_back(accumulator.getMax());
        vecStat.getAverage().push_back(accumulator.getSum() / accumulator.getNbEvent());

        // Compute time values
        vecStat.getStartTimestamp().push_back(startTimestamp);
        vecStat.getEndTimestamp().push_back(endTimestamp);
        time_t rate = endTimestamp - startTimestamp;
        vecStat.getRate().push_back(accumulator.getNbEvent()*1e9 / rate);
        vecStat.getRateEventAboveUpperBound().push_back(accumulator.getNbEventAboveUpperBound()*1e9 / rate);
        vecStat.getRateEventBelowLowerBound().push_back(accumulator.getNbEventBelowLowerBound()*1e9 / rate);

        vecStat.getVecRateQuantile().resize(accumulator.getVecHistogram().size());
        for(size_t i = 0; i < accumulator.getVecHistogram().size(); ++i){
                vecStat.getVecRateQuantile()[i].push_back(accumulator.getVecHistogram()[i]*1e9 / rate);
        }
        return vecStat;
}

References VecStat::getAverage(), VecStat::getEndTimestamp(), StatAccumulator::getMax(), VecStat::getMax(), StatAccumulator::getMin(), VecStat::getMin(), StatAccumulator::getNbEvent(), VecStat::getNbEvent(), StatAccumulator::getNbEventAboveUpperBound(), StatAccumulator::getNbEventBelowLowerBound(), VecStat::getRate(), VecStat::getRateEventAboveUpperBound(), VecStat::getRateEventBelowLowerBound(), VecStat::getStartTimestamp(), StatAccumulator::getSum(), StatAccumulator::getVecHistogram(), and VecStat::getVecRateQuantile().

Referenced by fillDaemonStat().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCommunicationStat()

void BaseDaemon::getCommunicationStat	(	const PString &	destName,
		const PString &	dataType,
		float	latency,
		size_t	nbBin,
		float	histLowerBound,
		float	histUpperBound )

private

Add a communication statistic.

Parameters

destName	: name of the destination Daemon from which data where pushed
dataType	: type of data which where pushed
latency	: latency between the send of the data and the receiving of the confirmation by the daemon destName
nbBin	: number of bin of the histogram
histLowerBound	: lower bound of the histogram
histUpperBound	: upper bound of the histogram

Definition at line 425 of file BaseDaemon.cpp.

                                                                                                                                                                {
        std::map<PString, std::map<PString, StatAccumulator> > & mapCommunication = p_config.getDaemonStatAccumulator().getMapStatCommunication();
        MapDaemonStatAccumulator::iterator it = mapCommunication.find(destName);
        if(it == mapCommunication.end()){
                mapCommunication[destName] = createNewCommunicationStatMap(dataType, nbBin, histLowerBound, histUpperBound);
        }
        else{
                std::map<PString, StatAccumulator>::iterator itDataType = it->second.find(dataType);
                if(itDataType == it->second.end()){
                        it->second[dataType] = createNewStat(nbBin, histLowerBound, histUpperBound);
                }
        }
        updateStatAccumulator(p_config.getDaemonStatAccumulator().getMapStatCommunication().find(destName)->second[dataType], latency);
}

References createNewCommunicationStatMap(), createNewStat(), p_config, and updateStatAccumulator().

Referenced by processConfirmedMessage().

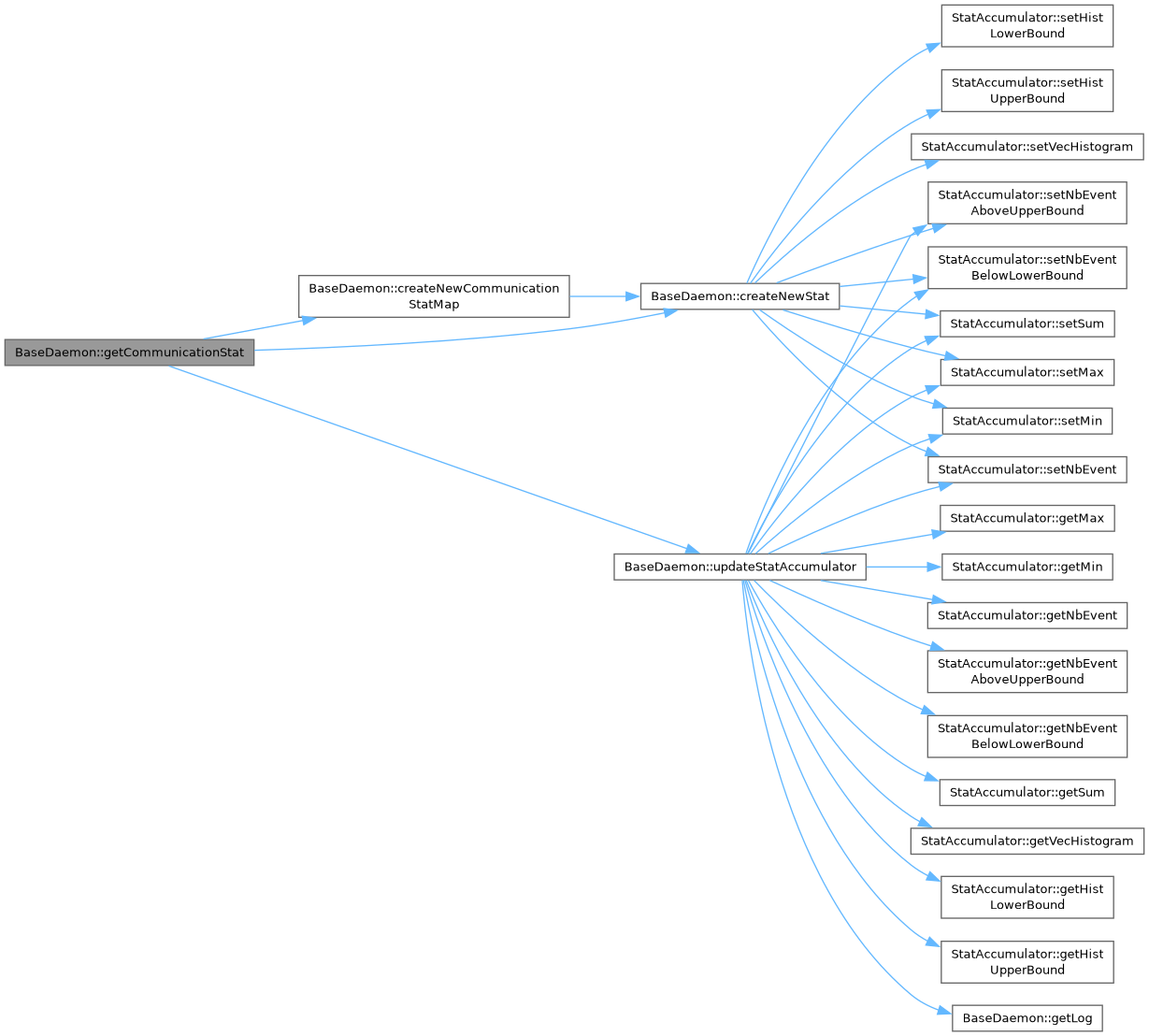

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getConfig()

DaemonConfig & BaseDaemon::getConfig ( )

Get the configuration of the current BaseDaemon.

Returns: configuration of the current BaseDaemon

Definition at line 365 of file BaseDaemon.cpp.

                                    {
        return p_config;
}

References p_config.

Referenced by StatDaemonManager< _TBackend >::addCallMethod().

Here is the caller graph for this function:

◆ getDataFunction()

AbstractDataFunction * BaseDaemon::getDataFunction ( const Data & data )

Get the data function associated with the given data.

Parameters

data	The data for which to retrieve the associated function

Returns: A pointer to the associated data function, or nullptr if not found

Definition at line 262 of file BaseDaemon.cpp.

                                                                  {
        PString prototype(data.getType());
        std::map<PString, AbstractDataFunction*>::iterator it(p_mapDataFunction.find(prototype));
        if(it == p_mapDataFunction.end()){
                getLog().getLogError() << "BaseDaemon::getDataFunction : function to process data '"<<prototype<<"' not found" << std::endl;
                return nullptr;
        }
        return it->second;
}

References getLog(), Data::getType(), and p_mapDataFunction.

Referenced by processData(), and Daemon< _TBackend >::processInputMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getLog()

PLog & BaseDaemon::getLog ( )

Get the log of the current BaseDaemon.

Returns: log of the current BaseDaemon

Definition at line 154 of file BaseDaemon.cpp.

                         {
        return p_log;
}

References p_log.

Referenced by addCallableMethod(), StatDaemonManager< _TBackend >::addCallMethod(), addDataCallableMethod(), addDataCallableMethod(), callMethod(), checkMessageTimeout(), getDataFunction(), Daemon< _TBackend >::initialisationDaemonSocket(), processConfirmedMessage(), processData(), Daemon< _TBackend >::processInputMessage(), Daemon< _TBackend >::sendStatToStatDaemon(), and updateStatAccumulator().

Here is the caller graph for this function:

◆ getLogger()

PLog & BaseDaemon::getLogger ( )

Get the logger of the current BaseDaemon.

Returns: logger of the current BaseDaemon

Definition at line 386 of file BaseDaemon.cpp.

                            {
        return p_log;
}

References p_log.

◆ getMainConfig()

DaemonMainConfig & BaseDaemon::getMainConfig ( )

Get the main configuration of the swarm.

Returns: main configuration of the swarm

Definition at line 379 of file BaseDaemon.cpp.

                                            {
        return p_mainConfig;
}

References p_mainConfig.

◆ getMapDaemonConfig()

MapDaemonConfig & BaseDaemon::getMapDaemonConfig ( )

Get the map of all Daemon configurations.

Returns: map of all Daemon configurations

Definition at line 372 of file BaseDaemon.cpp.

                                                {
        return p_mapDaemon;
}

References p_mapDaemon.

◆ getMapMessageToBeConfirmed()

const std::map< size_t, Message > & BaseDaemon::getMapMessageToBeConfirmed ( ) const

Get the map of message to be confirmed.

Returns: map of message to be confirmed

Definition at line 343 of file BaseDaemon.cpp.

                                                                             {
        return p_mapMessageToBeConfirmed;
}

References p_mapMessageToBeConfirmed.

◆ getMessageId()

size_t BaseDaemon::getMessageId ( )

Get current message id.

Returns: current message id

Definition at line 253 of file BaseDaemon.cpp.

                               {
        ++p_messageId;
        return p_messageId;
}

References p_messageId.

Referenced by Daemon< _TBackend >::sendData().

Here is the caller graph for this function:

◆ getMessageToConfirm()

bool BaseDaemon::getMessageToConfirm	(	Message &	message,
		size_t	id ) const

Get a message to confirm by id if it exists.

Parameters

[out]	message	: message which has the id id
	id	: id of the message to be searched

Returns: true if the message with id id does exist, false otherwise

Definition at line 189 of file BaseDaemon.cpp.

                                                                      {
        std::map<size_t, Message>::const_iterator it(p_mapMessageToBeConfirmed.find(id));
        if(it != p_mapMessageToBeConfirmed.end()){
                message = it->second;
                return true;
        }
        return false;
}

References p_mapMessageToBeConfirmed.

◆ getOptionParser()

OptionParser & BaseDaemon::getOptionParser ( )

Return the OptionParser of the current BaseDaemon.

Returns: OptionParser of the current BaseDaemon

Definition at line 147 of file BaseDaemon.cpp.

                                          {
        return p_optionParser;
}

References p_optionParser.

◆ initialisationBaseDaemon()

void BaseDaemon::initialisationBaseDaemon ( )

private

Initialisation function of the class BaseDaemon.

Definition at line 391 of file BaseDaemon.cpp.

                                         {
        p_optionParser.setExampleLongOption("phoenix_daemon --daemonconfig=daemon_config.toml --daemonname=main");
        p_optionParser.setExampleShortOption("phoenix_daemon -c daemon_config.toml -n main");
        p_optionParser.addOption("daemonconfig", "c", OptionType::FILENAME, true, "Toml configuration file which define all Daemons of the swarm");
        p_optionParser.addOption("daemonname", "n", OptionType::STRING, true, "Name of the current Daemon of the swarm configuration defined with --daemonconfig");
        p_optionParser.addOption("mock", "m", OptionType::NONE, false, "Activate the Daemon in mock mode for the sockets and the clock");
        p_optionParser.addOption("mockrecord", "r", OptionType::NONE, false, "Activate the Daemon in mock record mode for the sockets and the clock");
        p_isRun = false;
        p_messageId = 0lu;
        p_isFullMock = false;
        p_isFullMockRecord = false;
}

References p_isFullMock, p_isFullMockRecord, p_isRun, p_messageId, and p_optionParser.

Referenced by BaseDaemon().

Here is the caller graph for this function:

◆ isDaemonExist()

bool BaseDaemon::isDaemonExist ( const PString & name ) const

Say if a neighbour Daemon does exist.

Parameters

name	: name of the Daemon to be searched

Returns: true if the Daemon does exist, false otherwise

Definition at line 162 of file BaseDaemon.cpp.

                                                        {
        MapDaemonConfig::const_iterator it(p_mapDaemon.find(name));
        if(it == p_mapDaemon.end()){
                //Then if the stat daemon does not exist in the map, it may be the current daemon
                if(p_config.getName() == name){
                        return true;
                }
        }
        if(it != p_mapDaemon.end()){
                return true;
        }

        return false;
}

References p_config, and p_mapDaemon.

Referenced by loadConfigFromNode().

Here is the caller graph for this function:

◆ load() [1/2]

bool BaseDaemon::load	(	const PPath &	fileName,
		const PString &	daemonName )

Load the Toml configuration which define all BaseDaemons of the Swarm.

Parameters

fileName	: name of the configuration file of all the BaseDaemons of the Swarm in toml format
daemonName	: name of the current BaseDaemon in the given file

Returns: true on success, false otherwise

Definition at line 91 of file BaseDaemon.cpp.

                                                                       {
        ConfigNode dico;
        daemon_load_config(p_log, dico, fileName);
        loadConfigFromNode(dico, daemonName);
        return true;
}

References daemon_load_config(), loadConfigFromNode(), and p_log.

Here is the call graph for this function:

◆ load() [2/2]

bool BaseDaemon::load	(	const PString &	configFileContent,
		const PString &	daemonName,
		ConfigFormat::ConfigFormat	format )

Load the Json configuration which define all BaseDaemons of the Swarm.

Parameters

configFileContent	: name of the configuration file of all the BaseDaemons of the Swarm in json format
daemonName	: name of the current BaseDaemon in the given file
format	: format of the configuration file

Returns: true on success, false otherwise

Definition at line 79 of file BaseDaemon.cpp.

                                                                                                                   {
        ConfigNode dico;
        daemon_load_config(p_log, dico, configFileContent, format);
        loadConfigFromNode(dico, daemonName);
        return true;
}

References daemon_load_config(), loadConfigFromNode(), and p_log.

Referenced by parseArgument().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadConfigFromNode()

void BaseDaemon::loadConfigFromNode	(	const ConfigNode &	dico,
		const PString &	daemonName )

Load configuration form a node of ConfigNode.

Parameters

[out]	dico	: loaded configuration
	daemonName	: name of the current Daemon in the configuration

Returns: true on success, false otherwise

Definition at line 45 of file BaseDaemon.cpp.

                                                                                       {
        const ConfigNode * mapMainConfig = dico.getChild("swarm");
        if(mapMainConfig != nullptr){
                p_mainConfig.recvTimeoutMs = phoenix_get_value<int>(*mapMainConfig, "recv_timeout_ms", -1);
                p_mainConfig.sendTimeoutMs = phoenix_get_value<int>(*mapMainConfig, "send_timeout_ms", -1);
                p_mainConfig.recvFlag = daemonRecvFlagFromString(phoenix_get_string(*mapMainConfig, "recv_flag", "NON_BLOCK"));
                p_mainConfig.sendFlag = daemonSendFlagFromString(phoenix_get_string(*mapMainConfig, "send_flag", "NON_BLOCK"));
        }
        std::map<PString, time_t> mapTimeout;
        const ConfigNode * extraConfigParam = nullptr;
        daemon_read_configNode(p_config, p_mapDaemon, p_log, mapTimeout, extraConfigParam, dico, daemonName);

        const ConfigNode * mapStatDaemon = dico.getChild("statistics");
        if(mapStatDaemon != nullptr){
                p_config.setStatDaemonName(daemon_loadString(*mapStatDaemon, "stat_daemon_name"));
        }
        p_config.setMapTimeout(mapTimeout);
        if(p_config.getStatDaemonName() != ""){
                if(!isDaemonExist(p_config.getStatDaemonName())){
                        p_log.getLogError() << "BaseDaemon::loadConfigFromNode : stat daemon '"<<p_config.getStatDaemonName()<<"' not found in configuration" << std::endl;
                }
        }

        p_log.getLogInfo() << "BaseDaemon::loadConfigFromNode : loading configuration successful" << std::endl;
        p_log.getLogInfo() << "BaseDaemon::loadConfigFromNode : ready to call addCallMethod to subscribe on received data" << std::endl;
        addCallMethod();
}

References addCallMethod(), daemon_loadString(), daemon_read_configNode(), isDaemonExist(), p_config, p_log, p_mainConfig, and p_mapDaemon.

Referenced by load(), and load().

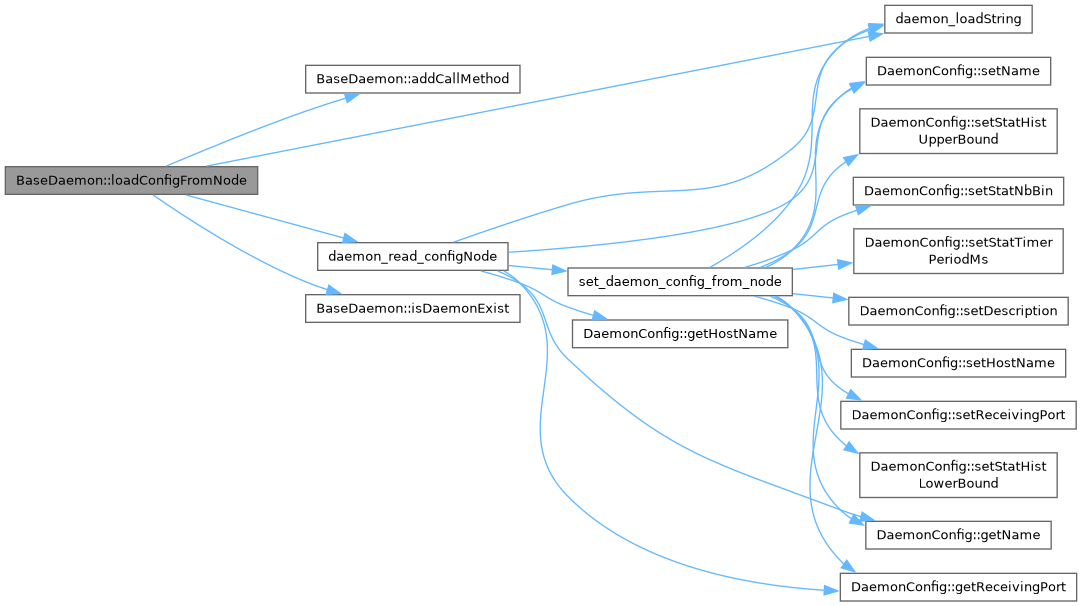

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parseArgument()

bool BaseDaemon::parseArgument	(	int	argc,
		char **	argv )

Parse arguments given to the BaseDaemon with command line.

Parameters

argc	: number of arguments given to the program
argv	: list of arguments given to the program

Returns: true on success, false otherwise

Definition at line 28 of file BaseDaemon.cpp.

                                                   {
        p_optionParser.parseArgument(argc, argv);
        const OptionMode & defaultMode = p_optionParser.getDefaultMode();
        PPath configurationFile;
        defaultMode.getValue(configurationFile, "daemonconfig");
        PString daemonName;
        defaultMode.getValue(daemonName, "daemonname");
        p_isFullMock = defaultMode.isOptionExist("mock");
        p_isFullMockRecord = defaultMode.isOptionExist("mockrecord");
        return load(configurationFile, daemonName);
}

References load(), p_isFullMock, p_isFullMockRecord, and p_optionParser.

Here is the call graph for this function:

◆ processConfirmedMessage()

void BaseDaemon::processConfirmedMessage	(	size_t	id,
		time_t	currentTime )

Process confirmed message.

Parameters

id	: id of the message to be removed
currentTime	: time when the confirmation was received

Definition at line 202 of file BaseDaemon.cpp.

                                                                     {
        std::map<size_t, Message>::const_iterator it(p_mapMessageToBeConfirmed.find(id));
        if(it != p_mapMessageToBeConfirmed.end()){
                getLog().getLogInfo() << "BaseDaemon::processConfirmedMessage : adding statistics for processed transaction " << id << std::endl;
                const Message & message = it->second;
                time_t ellapsedTime = currentTime - message.getSendTime();
                for(const PString & receiver : message.getVecRecver()){
                        getLog().getLogDebug() << "BaseDaemon::processConfirmedMessage : add statistic for receiver : " << receiver << std::endl;
                        getCommunicationStat(receiver, message.getData().getType(), ellapsedTime, p_config.getStatNbBin(), p_config.getStatHistLowerBound(), p_config.getStatHistUpperBound());
                }
                // Remove the confirmed message
                getLog().getLogInfo() << "BaseDaemon::removeConfirmedMessage : remove confirmed transaction " << id << std::endl;
                p_mapMessageToBeConfirmed.erase(it);
        }else{
                getLog().getLogError() << "BaseDaemon::processConfirmedMessage : transaction " << id << " not found in p_mapMessageToBeConfirmed" << std::endl;
        }
}

References getCommunicationStat(), Message::getData(), getLog(), Message::getSendTime(), Data::getType(), Message::getVecRecver(), p_config, and p_mapMessageToBeConfirmed.

Referenced by Daemon< _TBackend >::processInputMessage().

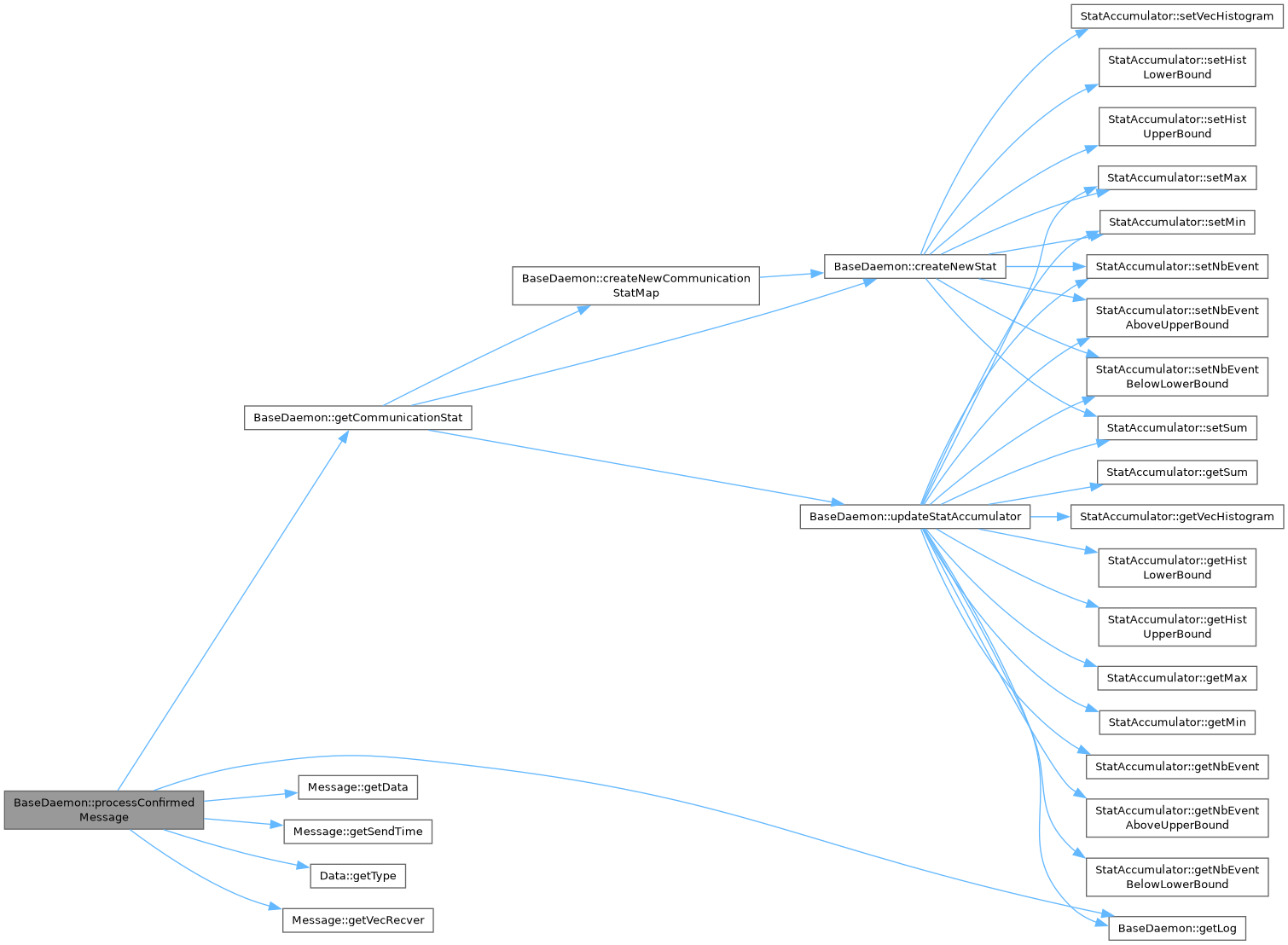

Here is the call graph for this function:

Here is the caller graph for this function:

◆ processData()

bool BaseDaemon::processData ( const Data & data )

Process given data with the proper method.

Parameters

data	: data to be processed

Returns: true on success, false otherwise

Definition at line 276 of file BaseDaemon.cpp.

                                             {
        AbstractDataFunction* function = getDataFunction(data);
        if(function == nullptr){
                return false;
        }
        getLog().getLogDebug() << "BaseDaemon::processData : process data '"<<data.getType()<<"'" << std::endl;
        bool b = function->call(p_log, data);
        return b;
}

References AbstractDataFunction::call(), getDataFunction(), getLog(), Data::getType(), and p_log.

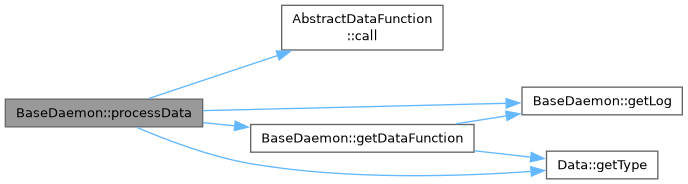

Here is the call graph for this function:

◆ stop()

void BaseDaemon::stop ( )

Stops the BaseDaemon.

Definition at line 139 of file BaseDaemon.cpp.

                     {
        p_log.getLogInfo() << "Stopping Daemon '"<<p_config.getName()<<"' at '"<<p_config.getHostName()<<"'" << std::endl;
        p_isRun = false;
}

References p_config, p_isRun, and p_log.

Referenced by Daemon< _TBackend >::processInputMessage().

Here is the caller graph for this function:

◆ updateStatAccumulator()

void BaseDaemon::updateStatAccumulator	(	StatAccumulator &	stat,
		float	value )

Update a computing statistic with a new value.

Parameters

stat	: statistic to be updated
value	: new value to be added to the statistic

Definition at line 290 of file BaseDaemon.cpp.

                                                                         {
        stat.setNbEvent(stat.getNbEvent() + 1lu);
        getLog().getLogDebug() << "BaseDaemon::updateStatAccumulator : event nb is " << stat.getNbEvent() << std::endl;
        if(stat.getNbEvent() == 1lu){
                stat.setMin(value);
                stat.setMax(value);
                stat.setSum(value);
        }else{
                if(value < stat.getMin()){
                        stat.setMin(value);
                }
                if(value > stat.getMax()){
                        stat.setMax(value);
                }
                stat.setSum(stat.getSum() + value);
        }
        if(value > stat.getHistUpperBound()){
                stat.setNbEventAboveUpperBound(stat.getNbEventAboveUpperBound() + 1lu);
        }
        if(value < stat.getHistLowerBound()){
                stat.setNbEventBelowLowerBound(stat.getNbEventBelowLowerBound() + 1lu);
        }
        float binSize = (stat.getHistUpperBound() - stat.getHistLowerBound()) / stat.getVecHistogram().size();
        size_t bin = (value - stat.getHistLowerBound()) / binSize;
        if(bin < stat.getVecHistogram().size()){
                std::vector<size_t> & vecHistogram = stat.getVecHistogram();
                vecHistogram[bin] = vecHistogram[bin] + 1lu;
        }
}

Referenced by getCommunicationStat(), and Daemon< _TBackend >::processInputMessage().

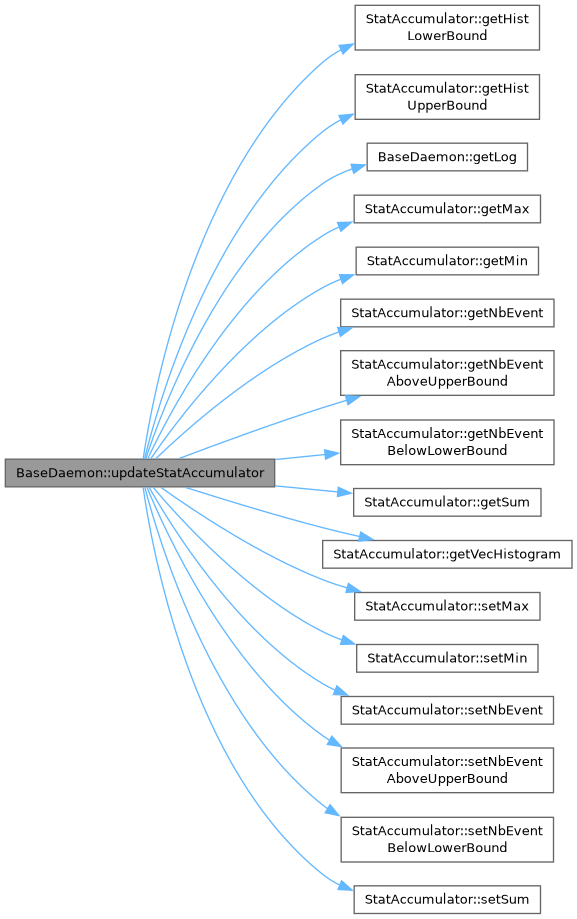

Here is the call graph for this function:

Here is the caller graph for this function:

Referenced by BaseDaemon(), getOptionParser(), initialisationBaseDaemon(), and parseArgument().

The documentation for this class was generated from the following files:

/builds/CTA-LAPP/PHOENIX_LIBS2/network/PhoenixSwarm/src/Daemon/BaseDaemon.h
/builds/CTA-LAPP/PHOENIX_LIBS2/network/PhoenixSwarm/src/Daemon/BaseDaemon.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BaseDaemon()

◆ ~BaseDaemon()

Member Function Documentation

◆ addCallableMethod()

◆ addCallMethod()

◆ addDataCallableMethod() [1/2]

◆ addDataCallableMethod() [2/2]

◆ addMessageToConfirm()

◆ callMethod()

◆ checkMessageTimeout()

◆ clearCallableMethod()

◆ clearStat()

◆ createNewCommunicationStatMap()

◆ createNewStat()

◆ extraLoad()

◆ fillDaemonStat()

◆ fillVecStat()

◆ getCommunicationStat()

◆ getConfig()

◆ getDataFunction()

◆ getLog()

◆ getLogger()

◆ getMainConfig()

◆ getMapDaemonConfig()

◆ getMapMessageToBeConfirmed()

◆ getMessageId()

◆ getMessageToConfirm()

◆ getOptionParser()

◆ initialisationBaseDaemon()

◆ isDaemonExist()

◆ load() [1/2]

◆ load() [2/2]

◆ loadConfigFromNode()

◆ parseArgument()

◆ processConfirmedMessage()

◆ processData()

◆ stop()

◆ updateStatAccumulator()

Member Data Documentation

◆ p_config

◆ p_isFullMock

◆ p_isFullMockRecord

◆ p_isRun

◆ p_log

◆ p_mainConfig

◆ p_mapCallableMethod

◆ p_mapDaemon

◆ p_mapDataFunction

◆ p_mapMessageToBeConfirmed

◆ p_messageId

◆ p_optionParser
